10KWh Energy Storage Battery 6000 Cycles 48V 200Ah For Solar Power System

Ask Lasest Price
Brand Name :	Amazing Energy
Model Number :	10KW Power Wall battery
Certification :	MSDS UN38.3
Price :	inquiry us
Payment Terms :	T/T, L/C
Supply Ability :	200 per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

10KWh Energy Storage Battery 6000 Cycles 48V 200Ah For Solar Power System

Energy Storage Battery 10KWh 6000 Cycles 48V 200Ah For Solar Power System With Inverter

Model: ES-BOX5
16S1P 51.2V 200Ah, can be OEM production with your model and LOGO

The Features of ES-BOX5 Energy Storage Battery 10Kwh 48V 200Ah for solar power system.

1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.

Descriptions of ES-BOX5 Energy Storage Battery 10Kwh 48V 200Ah for solar power system
Technical specification

Battery Type	LiFePo4 (Lithium Iron Phosphate Battery)
Norminal Voltage (V)	51.2V
Norminal Energy (KWh)	5.12KWH
Design Capacity	200Ah
Design Life	15 Years

Product Size

Size	673618193MM
Weight	89KG

Technical Parameters

Cycle life	> 6000 times 80% DOD
Operating Voltage Range	40V- 58.4V
Charging Voltage	DC 58.4V
Charging/Discharging Current (A)	Same Port 100A
Internal Resistance	<30mΩ

BMS Parameters

Self-Consumption	<2W
Rated Voltage	51.2V
Balance Current	30-65 (mA)
Communication Method	CAN / RS485 / RS232
Information Storage	500 Strip
Charging limiting Current	can be set through upper computer

Ambient Temperature

Operating Temperature	-10°C ~ 50°C
Storage Temperature	10°C ~ 50°C
Humidity	15% ~ 75%

Warranty

Warranty time

5 Years

Product Size of Energy Storage Battery 10Kwh 48V 200Ah for solar power system

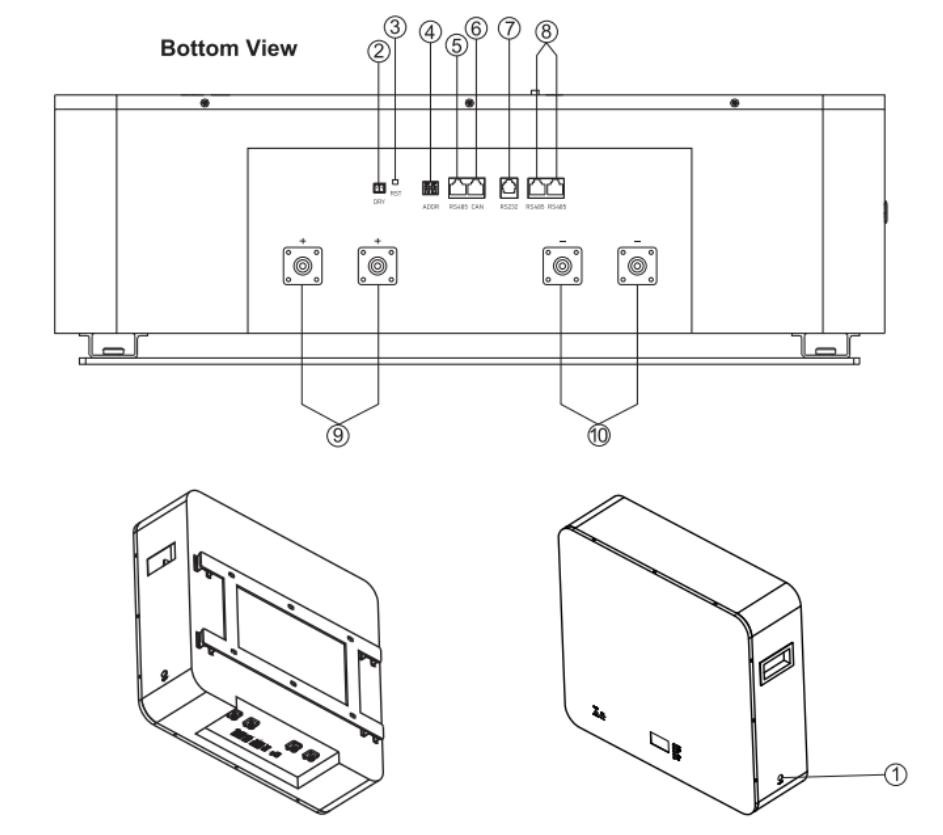

Product Interface:

10KWh Energy Storage Battery 6000 Cycles 48V 200Ah For Solar Power System

Compatible Inverter brands of Energy Storage Battery 10Kwh 48V 200Ah for solar power system

10KWh Energy Storage Battery 6000 Cycles 48V 200Ah For Solar Power System
Paralles Connection of Batteries
Connect the positive pole with positive pole in parallel, and the negative pole with negative pole in parallel, as shown in the figure below.

Solution Diagram

What is a solar battery and how does it work?

Solar panels make more electricity during the middle of the day than they do at any other time.

The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.

Solar batteries are able to store that extra solar energy so you can use it later on.

Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.

What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.

Features of LiFePO4 Battery compare with Lead acid Batteries:

Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.

Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.

BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.

Charging: Designed to work with AGM chargers.

Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.

Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.

The Package of ES-BOX5 Energy Storage Battery 10Kwh 48V 200Ah for solar power system

Package size of 10KW model: 74.5 *71.5* 29.7MM

Package Weight of 10KW model: 93KG

Pallet Size: 78*76MM

5pcs each pallet,

10KWh Energy Storage Battery 6000 Cycles 48V 200Ah For Solar Power System

We also have 48V or 51.2V 100Ah 5KW LiFePo4 Power Wall Battery in choose,

Inquiry our sales for details

the Shipping Method of ES-BOX5 Wall mount 10KW LiFePo4 Power Wall Battery

You can choose DHL, Fedex UPS to door if it is urgent

You can choose By sea to door for sample and not urgent

For batch order you can choose by sea to port

We have MSDS, UN38.3 test report for kinds shipping ways.
