Brand Name : | GreFlow Energy |
Model Number : | 10KW Power Wall battery |
Certification : | MSDS UN38.3 |
Price : | inquiry us |
Payment Terms : | T/T, L/C |
Supply Ability : | 200 per month |
Delivery Time : | 7-15 days |
Battery Type | LiFePo4 (Lithium Iron Phosphate Battery) |
Norminal Voltage (V) | 51.2V |
Norminal Energy (KWh) | 10.24KWH |
Design Capacity | 200Ah |
Design Life | 15 Years |
Size | 673*618*193MM |
Weight | 89KG |
Cycle life | > 6000 times 80% DOD |
Operating Voltage Range | 40V- 58.4V |
Charging Voltage | DC 58.4V |
Charging/Discharging Current (A) | Same Port 100A |
Internal Resistance | <30mΩ |
Self-Consumption | <2W |
Rated Voltage | 51.2V |
Balance Current | 30-65 (mA) |
Communication Method | CAN / RS485 / RS232 |
Information Storage | 500 Strip |
Charging limiting Current | can be set through upper computer |
Operating Temperature | -10°C ~ 50°C |
Storage Temperature | 10°C ~ 50°C |
Humidity | 15% ~ 75% |
Warranty time | 5 Years |

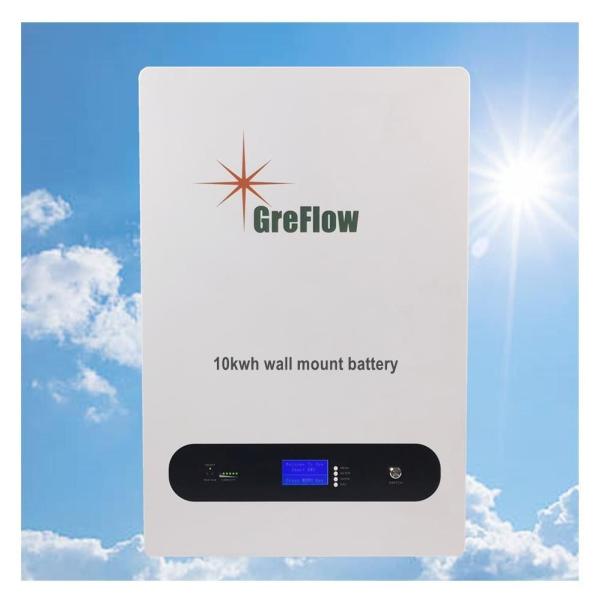

Product display of Powerwall 10Kwh 51.2V 200Ah battery pack:
Product Interface:
Compatible with these Inverter brands, and support communication protocols rewriting.
Paralles Connection of Batteries
Connect the positive pole with positive pole in parallel, and the
negative pole with negative pole in parallel, as shown in the
figure below.

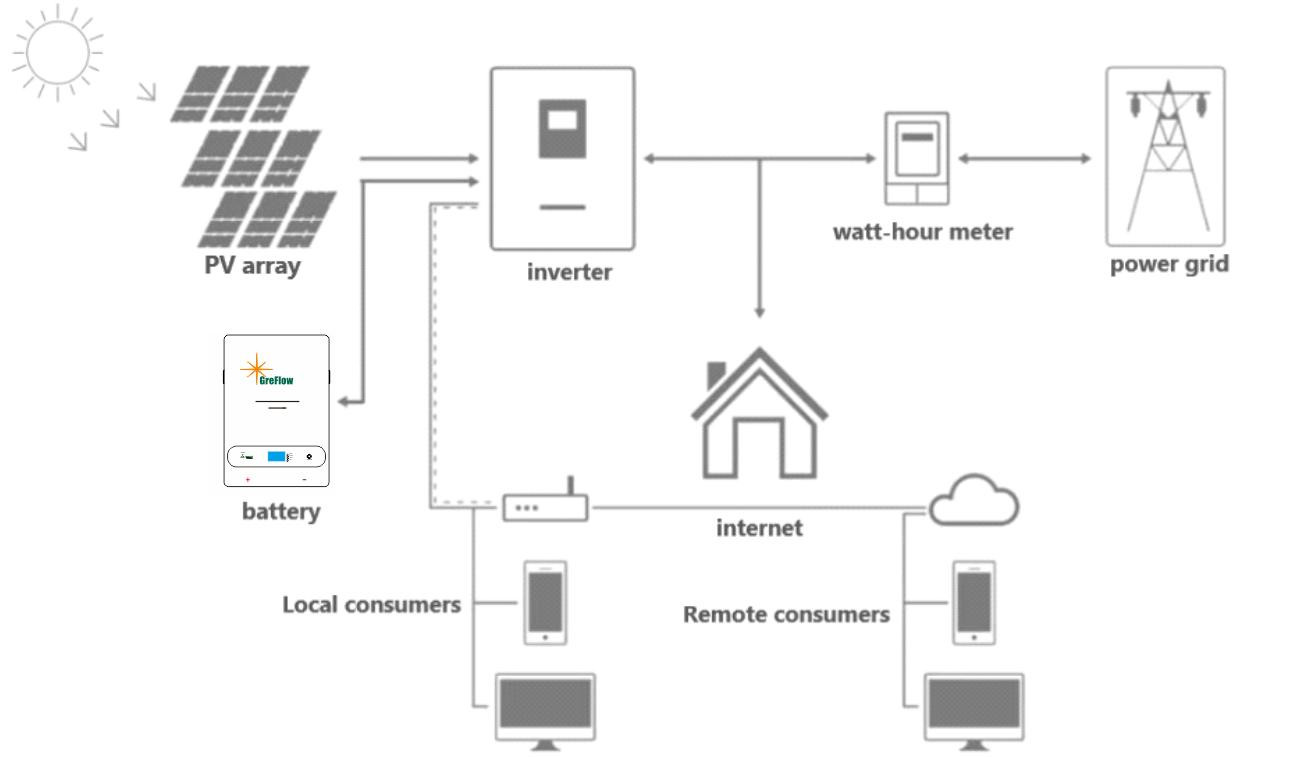

Solution Diagram
We also have 5Kwh model 51.2V 100Ah wall mount LiFePo4 Battery in choose,
the Shipment Method:
At the moment, we have 5KWh model in Poland warehouse, just need 5-7 days to Europe country.
If send from China warehouse, will send by sea to port or to door, need 40-50 days.
More information, freely check with our sales~
![]() |
