    Wall Mount ESS Battery All In One 48V 20KWH Home Energy Storage

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 48V 400Ah
    Certification : CE ROHS MSDS
    Supply Ability : 100 module per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Wall Mount ESS Battery All In One 48V 20KWH Home Energy Storage

    Wall Mount ESS Battery All In One 48V 20KWH Home Energy Storage


    Wall Mount ESS Battery All In One 48V 50KWH Energy Storage Battery Integrated 5.5KW Inverter


    • Pure sine wave output
    • Self-consumption and Feed-back to the Grid
    • Programmable supply priority for PV,battery or Grid
    • User-adjustable battery charging current
    • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
    • Built-in timer for various mode of on/off operation
    • Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi
    • Monitoring software for real-time status display and control
    • Enhance AC/Solar charger to 100A
    • Scalable Li-Ion battery expansion


    Specification:

    DC input
    Battery Box
    Max.PV input power
    8000W
    Number of battery modules
    2 pcs 51.2V 200Ah modules
    Max.PV input voltage
    370V
    Storage capacity
    20KWH
    Startup voltage
    150V
    Nominal voltage
    51.2V
    MPPT voltage range
    100-500V
    Battery voltage range
    42-57V
    No. of MPPT
    2
    Max discharge current
    200A
    Max. number of PV strings per
    MPPT

    1

    Battery type

    LFP
    AC input and output
    Battery brand
    /
    Nominal AC input power
    5000W
    Cooling
    /
    Nominal AC output power
    5000W
    Protect
    BMS inside
    Max. AC output Apparent power
    6000VA
    Max. AC output current
    /
    Battery Module
    Nominal output voltage
    110V/220C
    Module capacity
    10KWh
    AC voltage range
    120/240V
    Module dimensions (W×H×D)
    T214*W550*H621mm
    Nominal output frequency
    50/60Hz
    Module weight
    /
    Output power factor
    0.8leading - 0.8lagging
    General Specification
    Output THDi(@ Nominal output)
    <3%
    Environmental protection rate
    IP21
    Battery input and output
    Ambient temperature rate
    -25~45ºC
    Nominal battery voltage
    51.2V
    Communication
    4G/WIFI
    Battery voltage range
    42-57V
    Remote access
    APP/Website
    Max.charging current
    200A
    Warranty for inverter
    2years
    Max.discharging current
    200A
    Warranty for battery
    5years
    Dimension(W×H×D) of 10kwh module
    214 * 621 * 500

    Product Images:

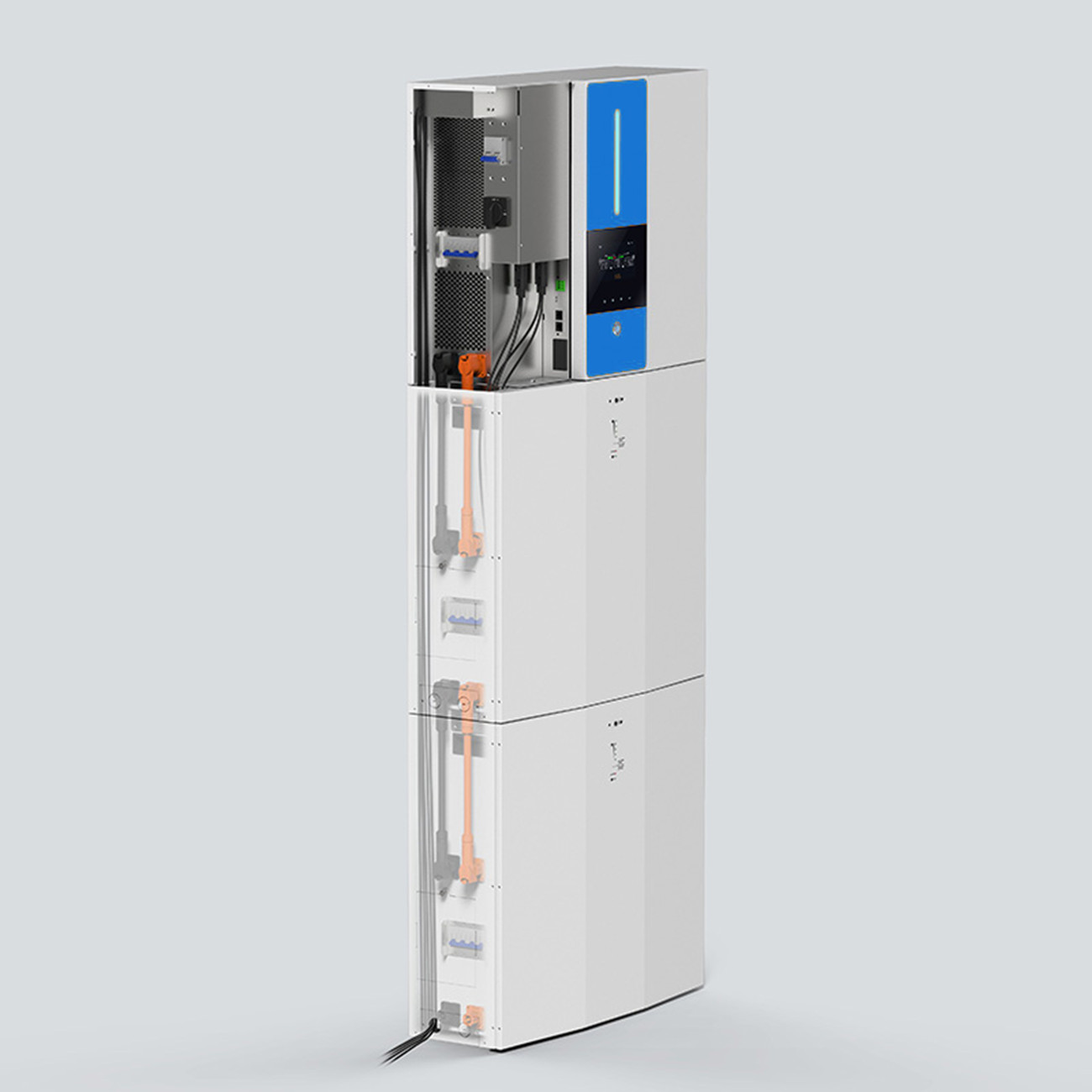

    The Home ESS electrical inter face provides a simple connection to any home or building.It is revolutionary compact design achieves market-leading energy density and is easy to install.enabling owners to quickly realize the benefits of reliable,clean power.


    Complete Cable Set for the ESS battery

    Powercable+Communication Cable



    System block diagram
    Compatible with most of the available Hybrid inverters
    AE ESS batteries have commissioned for communication and compatibility with the major inverter and solar charger brands such as Victron, Huawei, Goodwe, Growatt, Voltronic, Kehua, Kstar, East, Luxpower, Megarevo, INVT, Ginlong, Scholar, Sofar, etc. And the list is to be continued as our engineers are working on testing and commissioning with more inverter and charger brand.

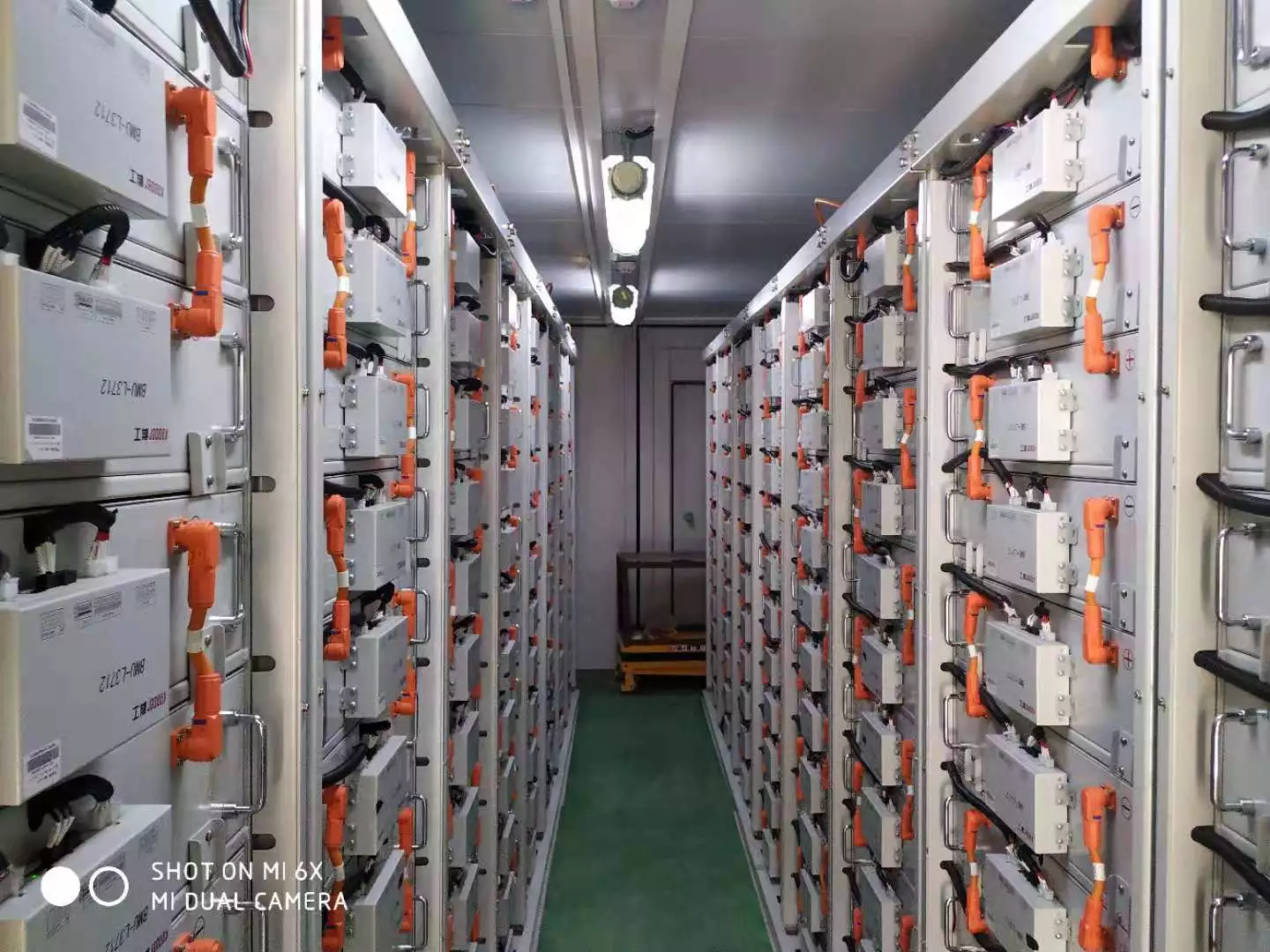

    Other Microgrid BESS projects
    Key Features

    ● LiFePO4 composition – provides exceptional safety and longevity

    ● High safety and reliability

    ● 6,000cycles/more than 15 years’ service life

    ● Consistent performance over wide temperature range

    ● Wall-mounted/Wheel stand, convenient installation

    ● Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates

    ● 5-10 years warranty
