    10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : LI-51200-W
    Certification : CE ROHS MSDS UN38.3
    Payment Terms : T/T
    Supply Ability : 100 module per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter

    10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter


    Specification of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs

    Model
    SP5000U- 5KWH
    SP7000U- 7KWH
    SP10000U- 10KWH
    Voltage
    48 V
    48 V
    48 V
    Capacity
    100 Ah
    150 Ah
    200 Ah
    Energy
    4.8 kWh
    7.2 kWh
    9.6 kWh
    Operation voltage
    42-54 Vdc
    42-54 Vdc
    42-54 Vdc
    Max.charging voltage
    54 Vdc
    54 Vdc
    54 Vdc
    Max.charging and discharging current
    100A
    100A
    100A
    Max Power
    4800 W
    7200 W
    9600 W
    Life time(25°C)
    10 years
    Life cycles(80% DOD, 25°C)
    6000 Cycles
    Storage time / temperature
    5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
    Operation temperature
    -20°C to 60°C @60+/-25% Relative Humidity
    Storage temperature
    0°C to 45°C @60+/-25% Relative Humidity
    Lithium Battery Standard
    UL1642, IEC62619, UN38.3, ROHS,CE-EMC
    Enclosure protection rating
    IP21
    Dimensions(L×W×H)
    680×480×180(220)mm
    Weight
    58.5 kg
    75 kg
    96.5 kg

    The Advantages of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs

    Compact Size
    High Energy Density Battery, Enabled Powerbox Ultra-Compact, Light Weight.Compact Size Makes Powerbox Easy To Handle.
    Modular Design
    Modular Design Gives The End Customers The Power Of Choice Of Capacity Deliver Up To 140KW With Single Max Module (10.24KWh) At 14pcs Parallel Connection.
    Long Life and Safety
    Vertical Industry Integration Ensures More Than 6000 Cycles With 80% DoD Safe Lithium Iron Phosphate Battery Cell.
    Wide Compatibility
    Our Battery is Proud To Announce That Our Modules Can Cooperate With Most Inverters On The Market.
    More Brands Are Coming Soon...

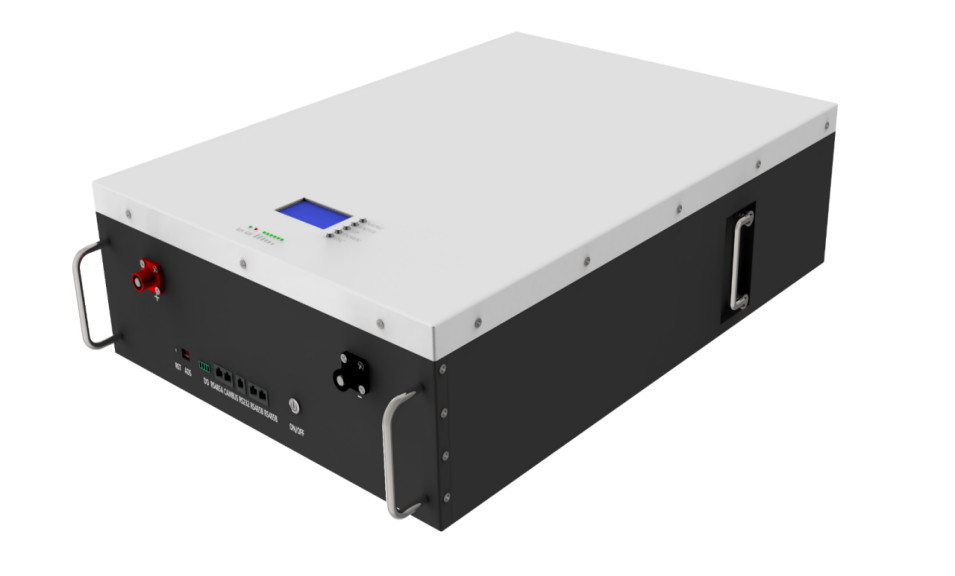

    Detail Images of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs
    10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter
    10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter
    Applications of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs
    1.Energy Storage
    --Solar-Wind Power System / City Grid (On/Off) / Community and Family
    2.Back-up System and UPS
    --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment 3.Other Applications
    --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
    --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
    --LED Backup / Engine Starting Battery,etc.
