    40Kwh lithium battery storage cabinet 48V 200Ah Lifepo4 Battery

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 48V 800Ah
    Certification : CE ROHS
    Payment Terms : T/T
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    40Kwh lithium battery storage cabinet 48V 200Ah Lifepo4 Battery

    40Kwh lithium battery storage cabinet 48V 200Ah Lifepo4 Battery


    Supply cuctom production service


    Function Parameter
    Norminal Battery Energy
    40480wh
    Norminal Capacity
    800Ah
    Norminal Voltage
    48V
    Internal Resistance
    ≤22mΩ
    Cycle Life
    >6000
    Months Self Discharge
    <3%
    Charge Data
    DC Normal Charge Voltage
    54.75±1Vdc
    Charge Mode
    0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
    Recommended Charger Current
    ≤200A
    Allowed Max. Charge Current
    200Adc
    Charge Cut-off Voltage
    54.75±1Vdc
    Discharge Data
    Continuous Discharge Current
    200A
    Allowed Max. discharge current
    400A (option:200Adc)
    Rang of DC discharge voltage
    37.5V-54.75Vdc
    Working Condition
    Charge Temperature
    0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature
    -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature
    0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
    Enclosure Protection Level
    IP56
    Mechanical Data
    Cell & Method
    /
    Shell material
    Iron
    Dimensions
    customizable
    Weight (lbs./kg.)
    /

    The Photo of 48v 200Ah battery


    40Kwh lithium battery storage cabinet 48V 200Ah Lifepo4 Battery

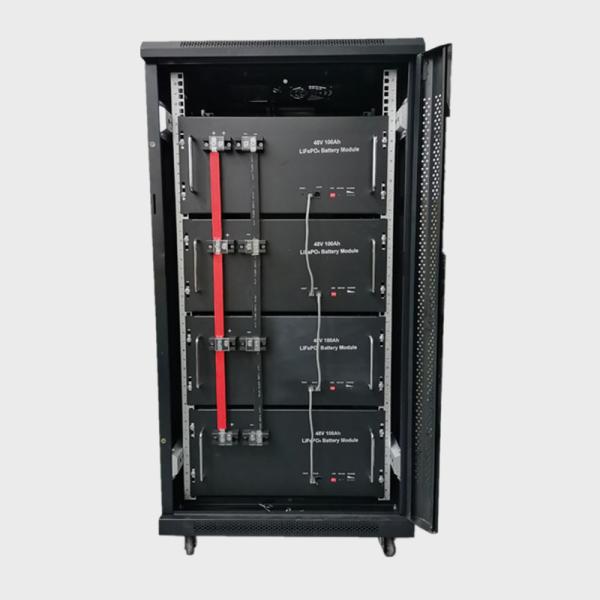

    The Photo of 40Kwh Battery Cabinet For Home Appliances


    40Kwh lithium battery storage cabinet 48V 200Ah Lifepo4 Battery


    System example diagram


    Modular design lithium battery
    LIFePO4 battery, Safe, Longer lIfe span. Modular deslgn, Easy to stack. L arger energy capaclty. Wlde temperaturerange of-20-25°C.



    Feature
    1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
    2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
    3. Maintenance free.
    4. Internal battery balance.
    5. Light weight: about 40%~50% of the weight of lead-acid batteries.
    6. Can be charged using most standard lead acid charge (set).
    7. Wide temperature range: -20 ° C ~ 60 ° C.
    8. Support for series application extensions (up to 512V).
