51.2V 100Ah 200Ah LiFePo4 Pack Solar Battery 48v Lithium Battery
Pack 5KW 5Kwh
The Advantages of 100Ah 200Ah LiFePo4 Pack Solar Battery 48V
Lithium Battery Pack:
1. High Energy: 5KWh energy storage, can meet 1 day electricity
usage of Home.
2. Bank-up function: no need worry of out of electricity when any
emergency situation.
3. Solar system. can work with Solar panels to storage Solar
energy. save money and eco friendly
4. Save electricity fee. can adjust electricity usage when high
price, and save more money.
5. Long service life: Lifepo4 battery Prismatic cell, can service
3000 times when left 80% energy, that is mean can service 10~15
years when High frequency of use.
6. Safe. Lifepo4 battery has no possibility of explosion when any
usage condition, it is very safe to place it in house.
7. Save space . Wall mounted design, don't take up space.
Basic specification of 100Ah LiFePo4 Pack Solar Battery 48V Lithium Battery Pack
| NO. | Item | General Parameter | Remark |
| 1 | Combination method | 15S2P | |
| 2 | Typical Capacity | 100Ah | Standard discharge after Standard charge |
| 3 | Factory Voltage | 49V-51.0V(40-60%) | Mean Operation Voltage |
| 4 | Voltage at end of Discharge | 40-44V | Discharge Cut-off Voltage |
| 5 | Charging Voltage | 53-55V | |
| 6 | Internal Impedance | ≤60mΩ | Internal resistance measured at AC 1KHZ after 50% chargeThe measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
| 7 | Standard charge | Constant Current 40A Constant Voltage see No.5 0.02CA cut-off | Charge time : Approx 6 h Limiting current 20A |
| 8 | Standard discharge | Constant current:40A | end voltage see NO.4 |
| 9 | Maximum Continuous Charge Current | 50A | ≥10ºC |
| 10 | Maximum Continuous Discharge Current | 50A | ≥10ºC |
| 11 | Operation Temperature Range | Charge: 0~45℃ Discharge: -20~55℃ | 60±25%R.H. Bare Cell |
| 12 | Storage Temperature Range | Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃ | at the shipment state |
| 13 | Dimensions | 680*485*180 (220)mm Include Bracket | |
| 14 | Weight | 65KG | |
The BMS function introduction of 100Ah 200Ah LiFePo4 Pack Solar Battery 48V Lithium Battery Pack
1. The BMS is designed for 15/16 series lithium battery.
2. The BMS have all functions which are :
overcharge detection function
over discharge detection function
over current detection function
short detection function
Temperature detection function
balance function
communicate function
Alarm function
Total capacity function
Storage history function
There shall be no such defect as scratch, bur and other mechanical
scratch, and the connector
should be no rust dirt. The structure and dimensions see attached
It has RS232 /RS485 and canbus standard communication interface, it
can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
It support most of Inverter on the market, just let us know your
inverter brand to confirm.

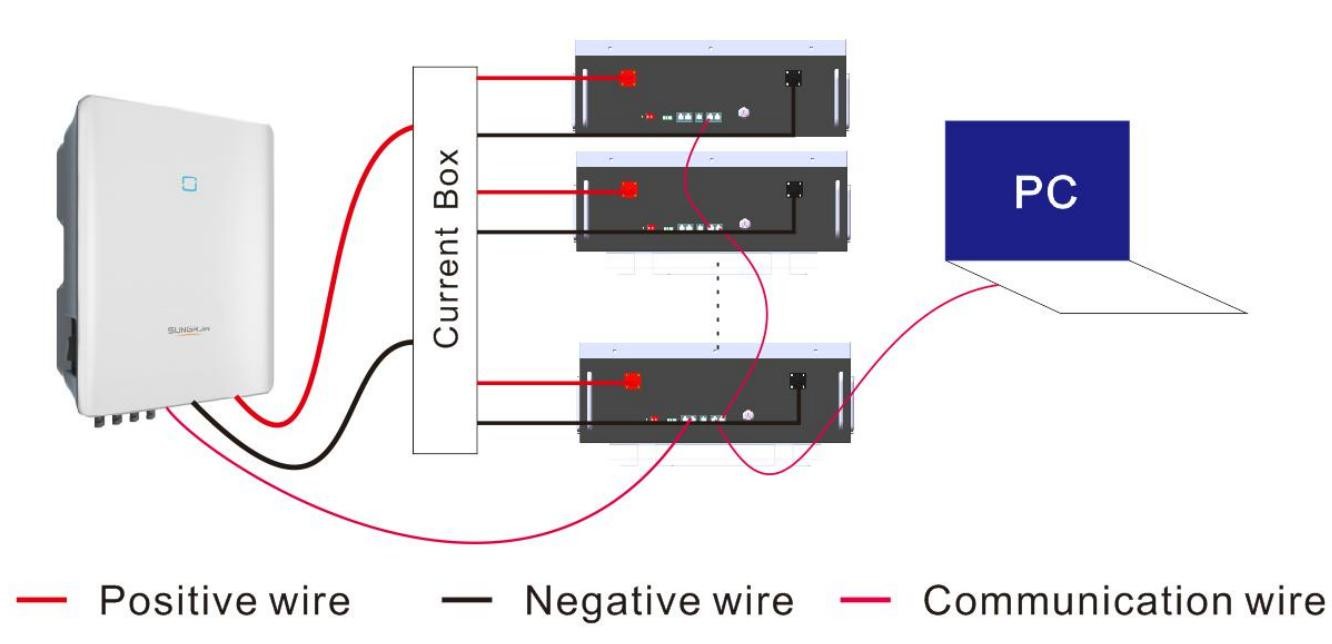

The connection image of RS485 Parallel Communication
While in RS485 parallel
communication, dial-up addresses of battery module are
1,2,3,4……14,15; By this method,
we can be allowed to
read each data depending on battery module. Any battery other than
address 0 can be
connected to the host computer; FF polling mode used
Address Switch function ( only in Parallel)
The Package of 100Ah 200Ah LiFePo4 Pack Solar Battery 48V Lithium Battery Pack
The Wooden package of 4 sets of 100Ah 200Ah LiFePo4 Pack Solar Battery 48V Lithium Battery Pack
The Wooden package of 6 sets of 100Ah 200Ah LiFePo4 Pack Solar Battery 48V Lithium Battery Pack
FAQ
Q1: Before order, can I have samples for testing?
A: Yes, we can provide you samples for testing firstly.
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to proceed an order?
A: 1. Contact our service & let us know your requirements or
application.
2. We quote according to your requirements or our suggestions.
Q4: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
and the storage condition shall be:<35°C , 65±20%RH
Q5: What is MOQ?
A: Low MOQ, 1pc for sample checking is available.
