    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 48V 100Ah
    Certification : ce/rohs/msds/un38.3
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS

    Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module with RS485 for ESS

    Specification of Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module
    Besic Parameter
    Norminal Battery Energy
    5120Wh
    Norminal Capacity
    100Ah
    Norminal Voltage
    48V
    Internal Resistance
    ≤22mΩ
    Cycle Life
    >6000
    Months Self Discharge
    <3%
    Charge Data
    DC Normal Charge Voltage
    54.75±1Vdc
    Charge Mode
    0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
    Recommended Charger Current
    ≤50A
    Allowed Max. Charge Current
    50Adc
    Charge Cut-off Voltage
    54.75±1Vdc
    Discharge Data
    Continuous Discharge Current
    100A
    Allowed Max. discharge current
    200A (option:200Adc)
    Rang of DC discharge voltage
    37.5V-54.75Vdc
    Working Condition
    Charge Temperature
    0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature
    -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature
    0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
    Enclosure Protection Level
    IP54
    Mechanical Data
    Cell & Method
    /
    Shell material
    Iron
    Dimensions
    482*400*177mm
    Weight (lbs./kg.)
    /

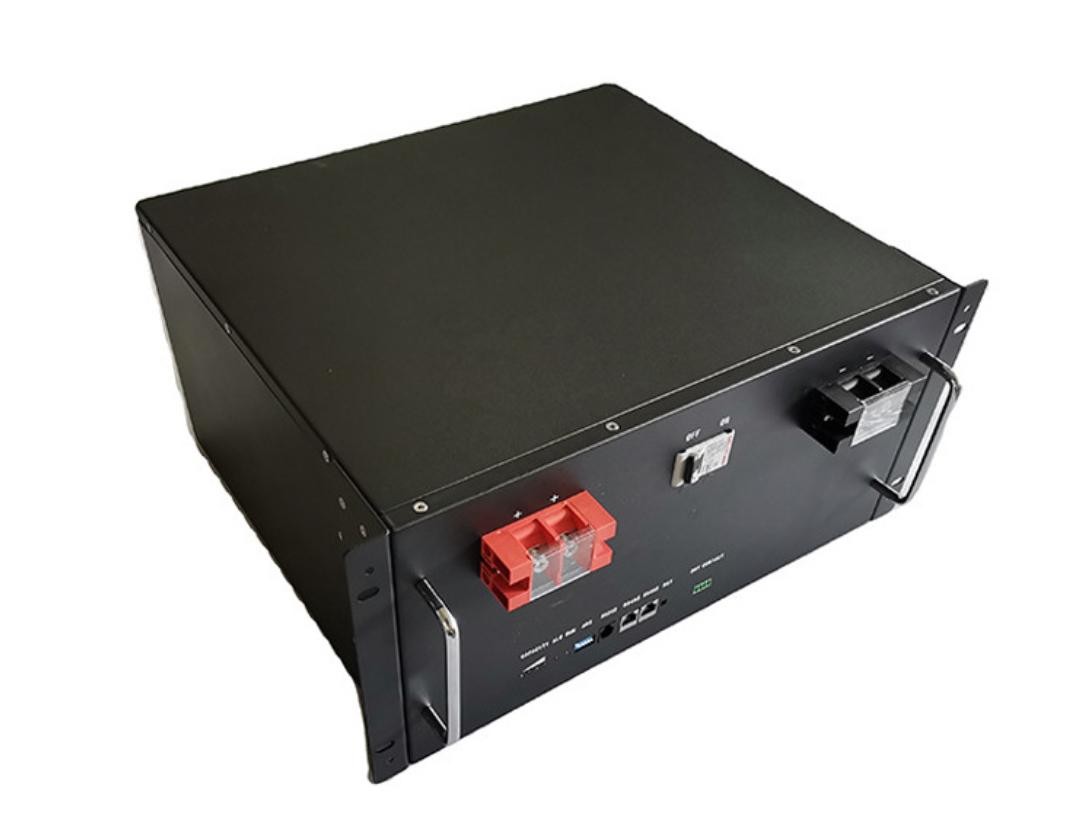

    The images of Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module

    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS


    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS


    The ESS Cabinet by Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module

    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS

    System example diagram of 4U Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module
    Modular design lithium battery
    LIFePO4 battery, Safe, Longer lIfe span. Modular deslgn, Easy to stack.
    Larger energy capaclty.
    Wlde temperature range of -20-25°C.
    Applications of 4U Lifepo4 Battery Solar System 51.2v 100Ah 4u Battery Module

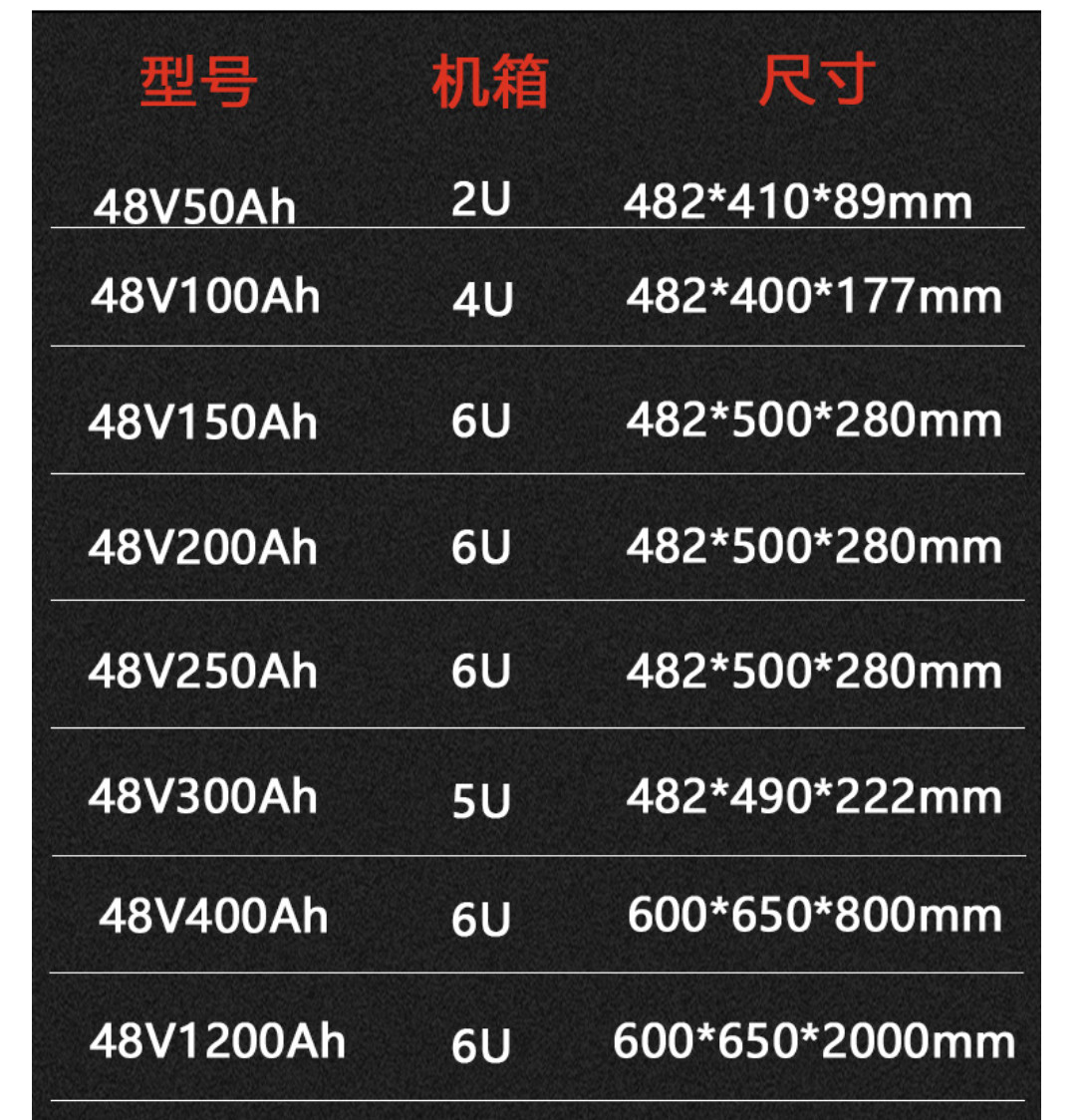

    Other models for Lifepo4 Battery Solar System Battery Module
    51.2v 100Ah 4u Module Lifepo4 Storage Battery RS485 For ESS

    FAQ
    Q1: Before order, can I have samples for testing?
    A: Yes, we can provide you samples for testing firstly.


    Q2: Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.


    Q3: How to proceed an order?
    A: 1. Contact our service & let us know your requirements or application.
    2. We quote according to your requirements or our suggestions.


    Q4: What kind of environment should lithium batteries store?
    A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
    and the storage condition shall be:<35°C , 65±20%RH


    Q5: What is MOQ?
    A: Low MOQ, 1pc for sample checking is available.
