Battery Type: | LiFePO4 battery cell |
Rated Voltage | 24V |
Rated Capacity | 100Ah |
Recommended Charge Current | 0.2C |
Continuous Charge Current | 1.0C |
Continuous Discharge Current | 1.0C |
Max. Discharge Current | 3.0C |
Discharge Cut-off Voltage | 20V |
Charge Limited Voltage | 29.2V |
Internal Impedance | ≤0.5mΩ |
Charge Temperature (CC/CV) | 0~45°C |
Discharge Temperature (CC/CV) | -20~60°C |
Cycle Life | ≥3000 cycles |
Single Cell Dimension | Customized |
The Features of GreFlow 24v lifepo4 100ah lithium battery for
Camper
1. Bluetooth APP: can add Bluetooth APP function to monitor Battery condition, can
check each cell voltage, capacity, temperature, know your battery
condition easy.
2. Charing protection function in cold whether. Can add function of stop charging when temperature under zero,
and can rise temperature up to zero first when charging it. This
function will protect lifepo4 battery perfectly in winter, and
extent its service life a lot.
3. Smart BMS: can protect battery when short-circuit, over charging, over
discharging, over current, over voltage, and have active or passive
(can choose) cell balancing function
4. Replace lead-acid battery. GreFlow lifepo4 battery have great advantage than lead acid
battery, can replace it perfectly.
5. Quality Brand cells, long Service life. choose CATL, CALB, BYD, EVE high quality cell
to make battery pack, the service life up to 4000-6000 cycles, save
a lot cost in long term.
6. Personalize Production. Design and Development capacity, can OEM and ODM production
according to customer personalize requirement.
Application:
ESS, mobile power battery ,Recreational Vehicle ,Yachts,Marine,
Electric Vehicle(Ebike,Escooer,Golf Carts) , Telecom Energy
Storage,Solar Off-Grid , UPS,Medical Equipment, Power Tools,
Lighting, Intelligent Robots and other fields... support customized
based on your application.
Warranty:
The period of warranty is 3 years from the date of shipment;
We guarantee to give a replacement in case of cells with defects
proven due to manufacturing process instead of the customer abuse
and misuse.
The Version-Bluetooth&Non Bluetooth Version:
You can monitor the battery data by APP display:
SOC, Cycles, Working Current , Working Voltage , Temperature ,
Remaining Capacity ,Fully Charge
Capacity,Manufacturer Date .etc . How to download? When you bought
our battery with Bluetooth , Please remember to go to the Google
app and apple store to install our bluetooth system to better
monitor your battery ,or you can scan the QR code in instruction
manual for downloading or the following QR code.
If you'd like to develop your own Bluetooth APP ,sure,Please
contact our professional sales to confirm more details:
Email: sales@amazing-battery.com
Whatapp/Tel: +86158 8953 7160

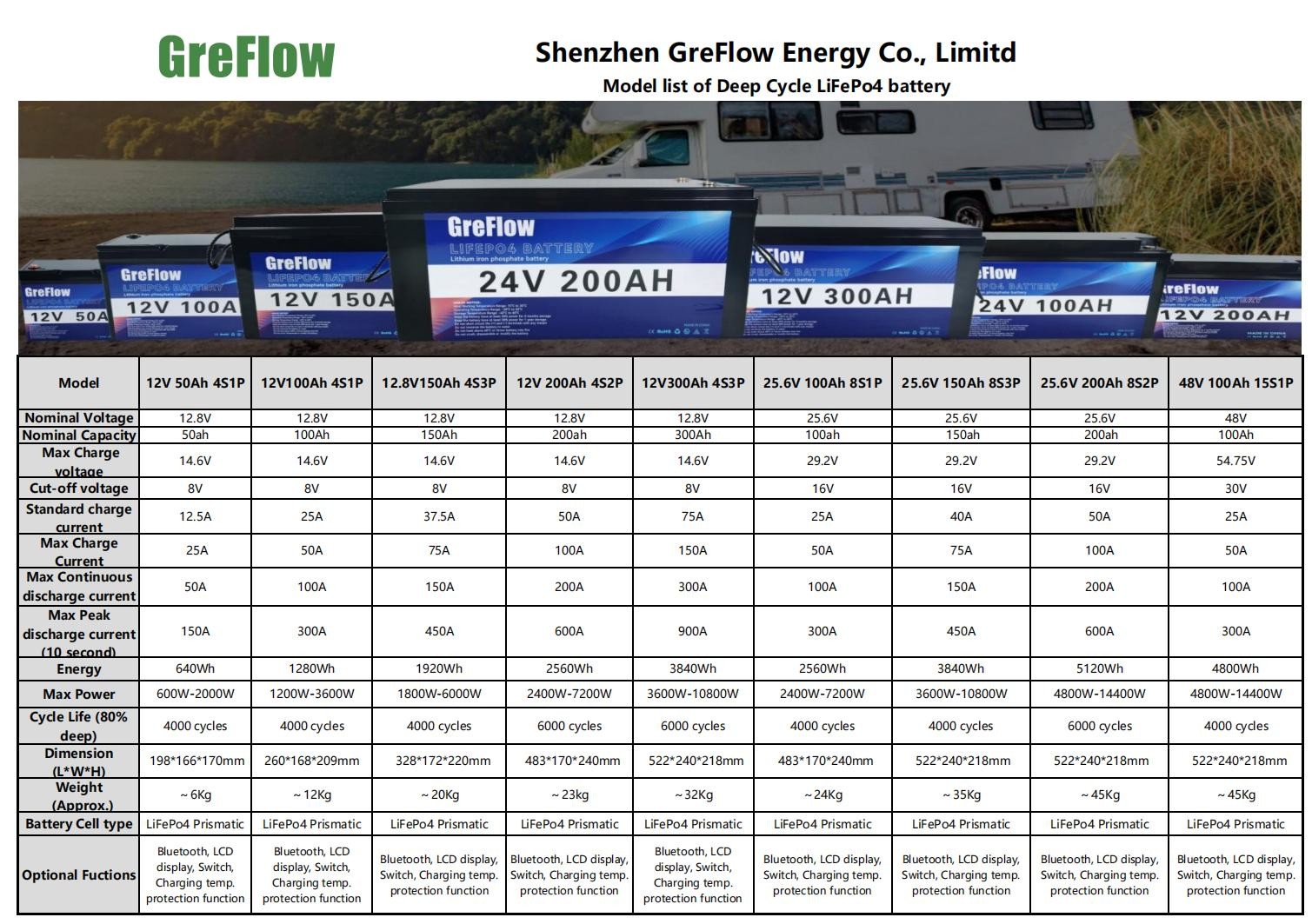

More Modles for your choice and welcome to consult with our sales
on line.Thank you.
Packges for 24v 100ah catl lifepo4 storage battery for camper
The usage notice of Images of 24v 100ah catl lifepo4 storage battery for camper
1. This is a rechargeable Lithium-Ion battery.
2. Use the proper charger to charge your battery.
3. Never leave batteries unattended while charging.
4. Do not short circuit.
5. May explode if damaged or disposed of in fire.
6. Ensure they are suitable for the device and/or Atomizer
combination.
7. Do not use if damaged.
8. Do not overcharge.
9. Do not over-discharge.
10. Dispose of old or damaged batteries properly.
11. Contact us if you have any questions before purchasing this
device.
12. This battery comes with a free case when ordered in Sets.
Advantages of Images of 24v 100ah catl lifepo4 storage battery
This UL certified 24V 100Ah LiFePO4 battery Pack has the following
advantages:
1. Good high-temperature performance
2. Long cycle life
3. No memory effect
4. Low self discharge rate
5. Good safety characteristics
6. Environment friendly
Shipping ways of 24v 100ah catl lifepo4 storage battery
| | ETD:3-7 days | The tracking will be update after pick up by local express.Usually
it will take around 15-25 days after delivery. | By sea+FEDEX Delivery (DDP,Tax free) |
ETA:25-30 days after delivery |
| | ETD:3-7days | The tracking will be update after pick up by local express.Usually
it will take around 20-30 days after delivery. | By railway+UPS(DDP,Tax free) |
ETA:30-35 days after delivery |
| | ETD:3-7 days | The tracking will be update after pick up by local express.Usually
it will take around 15-25 days after delivery. | |
ETA:25-30 days after delivery |
| We can't deliver the following address directly |
| USA: Military address and PO box address are not acceptable; Puerto
Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include
customs duties and requires additional freight, Please contact us
online. |
| Portugal: Azores and Madeira |
| Spain:Canary Islands, hueda and melilia |
| Russia: Kamchatka Peninsula |
| Other:Some remote areas not listed,Please provide shipping address and
zip code to to us to check. |
Noted: The tracking will be update after pick up by local express. Please wait patiently or contact us.*Countries that do not appear
in the table, Please consult us for freight charges |
FAQ
1). Are the batteries pack are new cell?
Yes,they are full new and will be delivery after internal
resistance and voltage are tested.
2). Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts,One Battery will come with
one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs
cells with 4 pcs busbars and 8pcs bolts)If need more please contact
us online.`
3). Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before
shipping.
4.) What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam
or bag,then into 5 layers strong carton.
5). How can I place the order?
For the RTS(ready for ship) product if there is clear shipping cost
or free shipping to your country you can place order and pay
directly before reading for all the details,or you can provide your
shipping informtion to our sales.
Payment method through TT and PayPal.
6). How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond
you ASAP.
