    6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 24V 100AH
    Certification : CE UN38.3
    Payment Terms : T/T
    Supply Ability : 10000 pack per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

    6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell


    Advantages of 24v lifepo4 battery pack 24v 100Ah
    1. Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning and explosion.Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.

    Easy Installation: Our screw in bolt ports allow for easy and secure connectivity. Plug and Play.


    2. Long Cycle Life: Can be charged and discharged more than 2000 times @ 85% DOD, 5000 times @ 60% DODLight Weight: LiFePO4 battery is lighter and smaller than Lead-acid battery/ Gel battery.


    3. Protection: LiFePO4 batteries built in BMS it has over charge, over discharge, over temp, short circuit protection.


    The Parameters of 24v lifepo4 battery pack 24v 100Ah

    Item

    Specification

    Note


    Battery Pack

    Nominal Voltage:

    24V(25.6V)

    Support Customized 6.4V-96V

    Nominal Capacity:

    100AH

    Any capacity can be customized

    End of Discharge Voltage:

    19.2V


    End of charge Voltage:

    29.2V


    Max.Cont. Charge Current:

    ≤50A

    Free Customization Service

    End of Charge Current:

    100mA

    Free Customization Service

    Nominal Discharge Current:

    50A(Safe)

    Free Customization Service

    Max. Pulse Discharge Current:

    100A(10S)

    Free Customization Service

    Internal Resistance:

    ≤50mΩ


    Operating Charge Temperature:

    0~45℃


    Operating Discharge Temperature:

    -20~60℃


    Storage Temp.(60-80% SOC Storage):

    -10~45℃


    Charge Method:

    CC/CV


    BMS:

    Built in BMS

    Support Customized Extra Function

    Dimension:

    360*420*180mm(L*W*H)

    Free Customization Service

    Weight:

    24KG


    Cycle Life:

    2000+

    (Cycle @RT, 1C rate, 85%DOD)

    Battery Cell Used

    Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell

    3.2V 100AH/ 50AH

    8S2P/ 8S4P

    BMS

    Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection

    Support Customized Extra Function

    LED Indicator

    /

    /



    Battery Case

    ABS Plastic Case

    /


    IP Grade:

    IP56

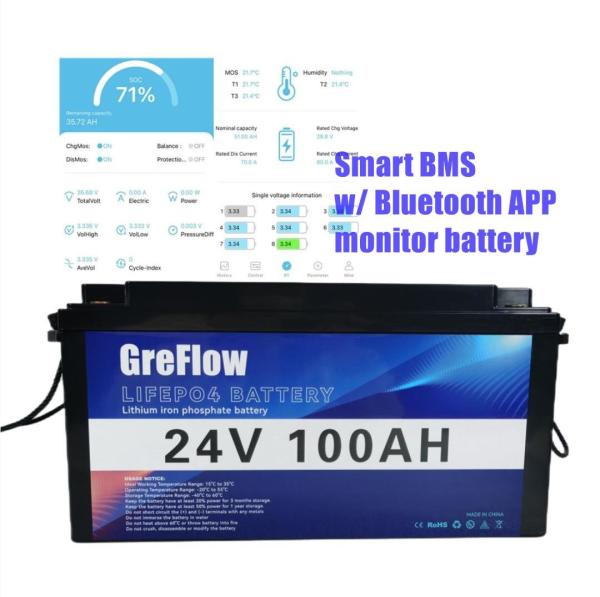

    The Images of 24v lifepo4 battery pack 24v 100Ah

    6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

    6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell6000 Times 2560WH 24V Lifepo4 Battery Pack 24V 100Ah With Prismatic Cell

    The products line of 24v lifepo4 battery pack:

    Widely application of 24v lifepo4 battery pack 24v 100Ah:
