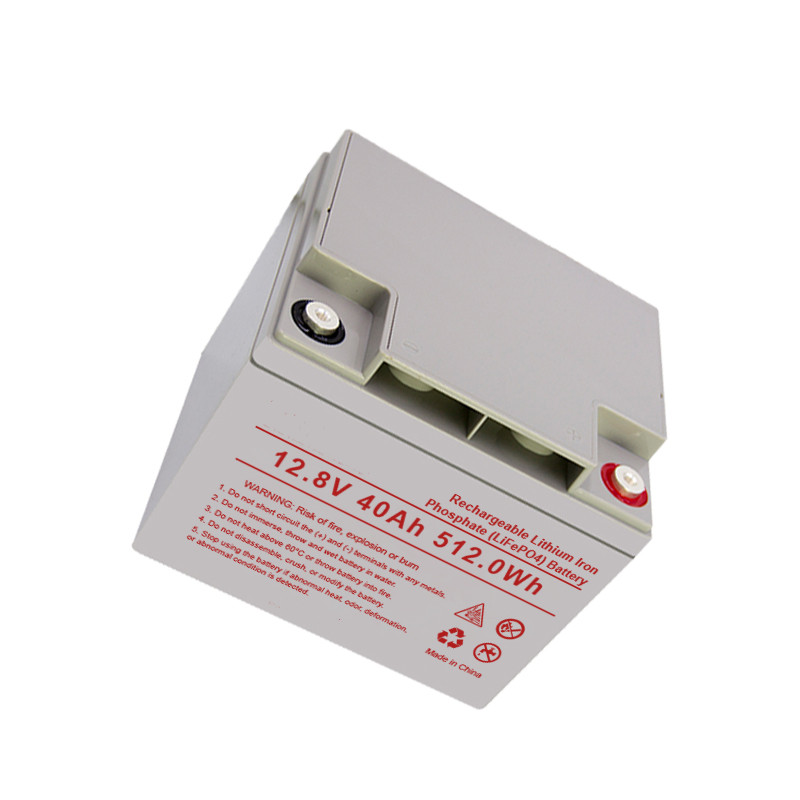

12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System

Shenzhen GreFlow Energy Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System from wholesalers

    Buy cheap 12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System from wholesalers
    • Buy cheap 12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System from wholesalers
    • Buy cheap 12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System from wholesalers

    12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 12V 40Ah
    Certification : ce/rohs/msds/un38.3
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Week
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System

    12 Volt 40ah Rechargeable Lithium Battery For Gildder Ups Solar System

    12V Lifepo4 Battery Power 12v 40ah Battery Pack For Gildder Ups Solar System
    ELECTRICAL SPECIFICATIONS
    Nominal Voltage
    12.8V
    Nominal Capacity
    40AH
    Energy
    512Wh
    Resistance
    ≤ 30mΩ @50% SOC
    Cycle Life
    3000 Cycles @ 0.5C Charging/Discharging
    Self Discharge
    ≤ 3% per Month at 25℃
    Maximum Modules in Series
    8PCS
    CHARGE SPECIFICATIONS
    Recommended Charge Voltage
    14.2 V - 14.6 V
    Reconnect Voltage
    15.2 V (3.8 ±0.05 vpc)
    Balancing Voltage
    14.4 V (3.6 ±0.025 vpc)
    Recommended Charge Current
    20-50A
    Maximum Charge Current
    20A
    Charge Current 32ºF to 14ºF (0 to -10 ºC)
    ≤0.05 C
    DISCHARGE SPECIFICATIONS
    Maximum Continuous Discharge Current
    32A
    Peak Discharge Current
    40A
    BMS Discharge Current Cut-Off
    60A(<3S)
    Recommended Low Voltage Disconnect
    11V
    BMS Discharge Voltage Cut-Off
    8 V (2.0 ±0.08 vpc) (140 ±60 ms)
    Reconnect Voltage
    9.2 V (2.3 ±0.1 vpc)
    Short Circuit Protection
    200-600 µs
    MECHANICAL SPECIFICATIONS
    Dimensions (L x W x H)
    196x165x182 mm
    Weight
    61.1 lbs (/kg)
    Terminal Type
    M8 x 1.25
    Terminal Torque
    80 - 100 in-lbs (9 - 11 N-m)
    Case Material
    ABS
    Shell Color
    Enclosure Protection
    IP66
    Cell Type - Chemistry
    Cylindrical - LiFePO4
    COMPLIANCE SPECIFICATIONS
    Certifications
    CE (battery)
    UN38.3 MSDS (battery)
    UL1642 & IEC62133 (cells)
    Shipping Classification
    UN 3480, CLASS 9
    Features of 12V 40Ah Lifepo4 battery pack
    FAQ

    Q1: Can I have samples to test? And what is lead time for sample order?
    A1: Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.


    Q2: Do you provide after-sales serive?
    A2: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.


    Q3 What is your company's advantage?
    A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service


    Q4: Do you accept OEM/ODM?
    A4: Yes,it is avaliable.


    Q5: What is your lead time for the mass production?
    A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


    Q6:Are you battery real capacity?
    A6: All of our battery cells with Grade A,100% new and real capacity.


    Q7: What kind of certificates do you have?
    A7: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
