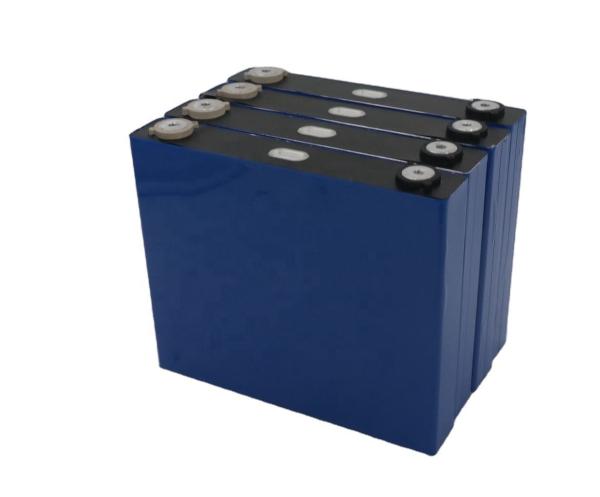

Electric Car Phosphate 3.2v 105ah CATL Lifepo4 Cell Aluminum Shell
CATL Lifepo4 Battery Cell 3.2v 105ah Aluminum Shell Using For Golf
Cart EV Electric Car
Products Description CATL BATTERY 3.2v 105ah lifepo4 battery size:
Items | Description | Dimensions (mm) |
W | Width | 34 |
T | Thickness | 167 |
L | Length | 200 |
Technical Parameters for CATL Lifepo4 Cell Battery
NO. | Items | Parameter | Remarks |
1 | Nominal Capacity | 105Ah | Standard Discharge |
2 | Minimal Capacity | 105Ah | Standard Discharge |
3 | Work Voltage | 2.5~3.65V | |
4 | Internal Resistance(Ac. 1kHz) | 0.1~0.5mΩ | Fresh Cell,30%SOC |
5 | Charging Time | Standard Charge | ~4h | Reference Value |
| | Fast Charge | ~1h | |
6 | Recommended SOC Window | SOC :10%~90% | |
7 | Operating Temperature | Charging Temperature | 0~45°C | Refer to section 4.2 |
| | Discharging Temperature | -20~55°C | Refer to section 4.4 |
8 | Weight | 2.26kg | |
Battery Shipping Way for CATL Battery
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on
express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method
according your detail requirement
3. The shipping discount is different in different seasons and
depend different weight, we will choose the cheapest and safest way
according your detail quantities.
4. Normally, it will take around 3-7days from China to destination
country. Please note that some remote place will need 1-3 days
more.
Product market
The rising global demand for solar,wind and other clean energy has
seen the market grow exponentially over the last few years, with
the trend predicted to continue. Due to the inherent limitations of
renewable energy, the lithium battery energy storage industry
develop rapidly.
Long cycle life high quality CATL 3.2v 105ah Lithium Lifepo4
Battery for EV ESS golf cart
1. More than 3500 cycles under the designed working condition
2. Anti-explosion safety valve applied
3. Aluminum shell for better cooling
4. Ceramic membrane technology applied to enhance safety
5. Wild applications :UPS ,Solar Storage ,EV etc.application
Key Features for CATL Battery
♦ Longer Cycle Life : Offers up to 4000 times longer cycle life and
8 times longer float/calendar life than lead acid battery , helping
to minimize replacement cost and reduce total cost of ownership.
♦ Lighter Weight : About 35% of the weight of a comparable lead
acid battery . A " drop in" replacement for lead acid batteries.
♦ Higher Power : Delivers twice power of lead acid battery ,even
high discharge rate, while maintaining high energy capacity.
♦ Wider Temperature Range : -20℃~60℃.
♦ Superior Safety: Lithium Iron Phosphate chemistry eliminates the
risk of explosion or combustion due to high impact overcharging or
short circuit situation.
♦ Environment friendly: Clean and Green energy poses no pollution
on our environment.
Aplication for LFP Battery
Passenger and commercial plug-in hybrid electric vehicles (PHEVs).
· Passenger and commercial battery electric vehicles (BEVs).
· Mild and micro hybrid vehicles.
· Long-Duration (LD) grid energy storage systems.
1) Electric vehicles and charging stations, tourist coaches,
yachts, wind and solar energy storage power, traffic signals.
2) Solar hybrid street lighting, UPS power supply, home storage.
3) Coal, disaster relief emergency, weather radar, electricity,
smart grid, communication base stations.
4) Hospitals, finance, telecommunications , system critical backup
power systems.
