    L135F72 72AH CALB Lifepo4 Battery Prismatic Cells For Solar Pannel NCM Lithium Battery

    Ask Lasest Price
    Brand Name : CALB
    Model Number : L135F72
    Certification : CE, UL,IEC62133,KC
    Payment Terms : T/T; Paypal
    Supply Ability : 100000 Piece/Pieces per Month Lithium iron phosphate cell
    Delivery Time : 1-100pcs 5 days;more than 100pcs to be negotiated
    • Product Details
    • Company Profile

    L135F72 72AH CALB Lifepo4 Battery Prismatic Cells For Solar Pannel NCM Lithium Battery

    L135F72 72AH CALB Lifepo4 Battery Prismatic Cells For Solar Pannel


    CALB 72AH L135F72 Lifepo4 Prismatic Cells For Solar Pannel

    Feature

    1. High capacity and stable discharge voltage
    2. Longer working time with high performance
    3. Light weight with small size
    4. Outstanding discharge properties and small internal resistance
    5. No memory effect, good discharge ability and high load and resist high temperature
    6. Pollution free for environmental protection
    7. 100% Authentic original li-ion rechargeable battery
    8. Bulid in anti-explosion protection and circuit protection


    What services Amazing Energy can provide you?
    1. We are the long term partner of CALB for sales and technical support. We can provide you the most competitive price.
    2. We can provide 24 months warranty.
    3. We can help to arrange all the shimmping, you don't need to worry at all.
    We ship lithium ion battery by a 20 feet Dangerous Goods container by sea from Shenzhen to USA every month.

    Parameter-72AH L135F72 lifepo4 batteries solar backup power when block out

    NO.ItemSpecifications
    4.1Nominal capacity72Ah 0.5C Discharge
    4.2Nominal voltage3.2V
    4.3Charge current

    Standard Charge 20A

    Rapid charge 50A

    4.4Standard Charging method

    0.5C CC(constant current)charge to 3.7V,then CV(constant voltage 3.7V)

    charge till charge current decline to ≤0.01C

    4.5Charging time

    Standard Charging Approx 5 hours

    Rapid charge Approx 2 .5hours

    4.6Constant charge current20amp
    4.7Continuous discharge current72amp-144amp(3minutes)
    4.8Pulse Discharge Current216amp 30 seconds
    4.9Discharge cut-off voltage2.0V
    4.10Charge cut-off Voltage3.7V
    4.11Initial Impedance≤1momh
    4.12WeightApprox 2kg
    4.13Operating temperature

    Charging 0~45 degrees Celsius

    Discharging -20~60 degrees Celsius

    4.14Storage temperature-20 to +45 degrees Celsius
    4.15Storage Humidity≤75% RH
    4.16AppearanceWithout scratch,distortion,contamination and leakage
    4.17Standard environmental condition

    Temperature 23±5 degrees Celsius

    Humidity 45-75%RH

    Atmospheric Pressure 86-106 Kpa

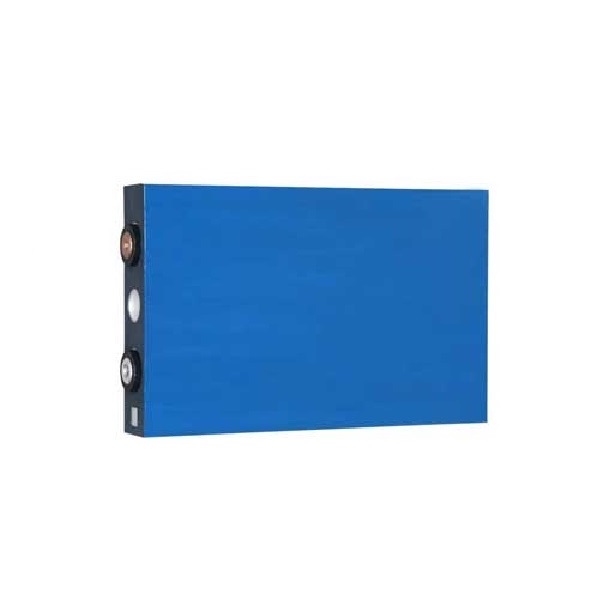

    More pictures about CALB 72AH L135F72 Lifepo4 Prismatic Cells For Solar Pannel


    Application
    1. RV/LOW speed EV

    2. Solar/home energy storage

    3. Golf cart

    4. Electric motorbike

    5. UPS backup power

    6. Electric bicycal




    Intelligent manufacturing
    1. advanced assembly technology
    2. reliable battery connection techonology
    3. comprehensive process monitoring and tracing
    4. robot system integration technology

    Attention
    1. Do not expose to, dispose of the battery in fire.
    2. Do not put the battery in a charger or equipment with wrong terminals connected.
    3. Avoid shorting the battery
    4. Avoid excessive physical shock or vibration.
    5. Do not disassemble or deform the battery.
    6. Do not immerse in water.
    7. Do not use the battery mixed with other different make, type, or model batteries.
    8. Keep out of the reach of children.
