10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

Shenzhen GreFlow Energy Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers

    Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers
    • Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers
    • Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers
    • Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers
    • Buy cheap 10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell from wholesalers

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

    Ask Lasest Price
    Brand Name : GreFlow Energy
    Model Number : 10KW Power Wall battery
    Certification : MSDS UN38.3
    Price : inquiry us
    Payment Terms : T/T, L/C
    Supply Ability : 200 per month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    Renewable Energy Storage 10kwh Lifepo4 Battery Pack Solar & Home Batterie


    16S1P 51.2V 200Ah, can be OEM production with your model and LOGO

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell
    Descriptions of Renewable Energy Storage 10kwh Lifepo4 Battery Pack


    Technical specification

    Battery Type

    LiFePo4 (Lithium Iron Phosphate Battery)

    Norminal Voltage (V)

    51.2V

    Norminal Energy (KWh)

    5.12KWH

    Design Capacity

    200Ah

    Design Life

    15 Years


    Product Size

    Size

    673*618*193MM

    Weight

    89KG


    Technical Parameters

    Cycle life

    > 6000 times 80% DOD

    Operating Voltage Range

    40V- 58.4V

    Charging Voltage

    DC 58.4V

    Charging/Discharging Current (A)

    Same Port 100A

    Internal Resistance

    <30mΩ


    BMS Parameters

    Self-Consumption

    <2W

    Rated Voltage

    51.2V

    Balance Current

    30-65 (mA)

    Communication Method

    CAN / RS485 / RS232

    Information Storage

    500 Strip

    Charging limiting Current

    can be set through upper computer


    Ambient Temperature

    Operating Temperature

    -10°C ~ 50°C

    Storage Temperature

    10°C ~ 50°C

    Humidity

    15% ~ 75%


    Warranty

    Warranty time

    5 Years


    Image display of Renewable Energy Storage 10kwh Lifepo4 Battery Pack

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

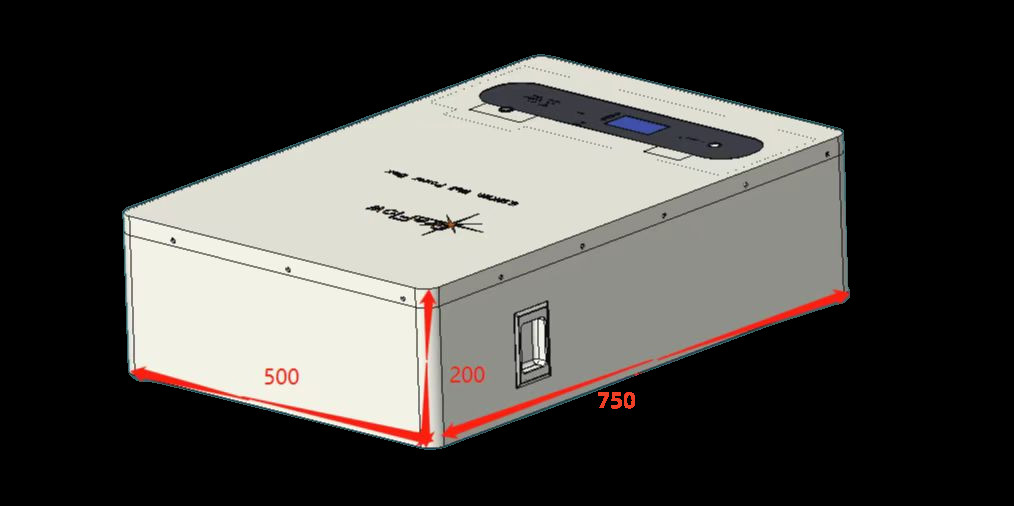

    Product Size

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    Compatible Inverter brands of lifepo4 battery 48v 200ah power wall 10kwh lithium ion battery with Smart BMS

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell

    The Features of

    48v lifepo4 battery lithium battery 48v 200ah power wall 48v200ah batterie pack


    1. Smart. Each module is equipped with an independent BMS.
    2. Easy installation. design simple bracket, just plug & play.
    3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
    4. Certifications. MSDS and UN38.3, CE and IEC in applying.
    5. Modular. Modular expansion, support 8pcs connection in paralles.
    6. Longer lifetime. 6000 cycles, 15 years design life.


    max support 15pcs connection in parallels

    Solution Diagram


    What is a solar battery and how does it work?

    Solar panels make more electricity during the middle of the day than they do at any other time.

    The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.


    Solar batteries are able to store that extra solar energy so you can use it later on.

    Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.

    What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.


    Features of 48v lifepo4 battery lithium battery 48v 200ah power wall 48v200ah batterie pack
    :

    Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.

    Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.

    BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.

    Charging: Designed to work with AGM chargers.

    Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.

    Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.



    The Package of wall mounted battery 48V 200Ah wall mount 10kwh powerwall battery

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    We also have 48V or 51.2V 100Ah 5KW LiFePo4 Power Wall Battery in choose,

    Inquiry our sales for details

    10kwh Renewable Energy Storage LiFePo4 Prismatic Battery Cell


    the Shipping Method of ES-BOX5 Wall mount 10KW LiFePo4 Power Wall Battery


    You can choose DHL, Fedex UPS to door if it is urgent

    You can choose By sea to door for sample and not urgent

    For batch order you can choose by sea to port

    We have MSDS, UN38.3 test report for kinds shipping ways.
