    100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 51.2V 1000Ah
    Certification : CE ROHS
    Payment Terms : T/T
    Supply Ability : 100 sets per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System

    Lifepo4 100kw 100kwh Battery Cabinet with 48v 200Ah Battery Module Energy Storage System


    Specification of 51.2V 200Ah battery module for lifepo4 100kw 100kwh battery cabinet

    Function Parameter
    Norminal Battery Energy
    10wh
    Norminal Capacity
    200Ah
    Norminal Voltage
    51.2V
    Internal Resistance
    ≤12mΩ
    Cycle Life
    >4000 left 80% energy
    Months Self Discharge
    <3%
    Charge Data
    DC Normal Charge Voltage
    54.75±1Vdc
    Charge Mode
    0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
    Recommended Charger Current
    ≤200A
    Allowed Max. Charge Current
    200Adc
    Charge Cut-off Voltage
    54.75±1Vdc
    Discharge Data
    Continuous Discharge Current
    200A
    Allowed Max. discharge current
    400A (option:200Adc)
    Rang of DC discharge voltage
    37.5V-54.75Vdc
    Working Condition
    Charge Temperature
    0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature
    -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature
    0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
    Enclosure Protection Level
    IP56
    Mechanical Data
    Cell & Method
    LiFePo4 prismatic 3.2V 100Ah cell, 16S2P
    Shell material
    Iron
    Dimensions
    customizable
    Weight (lbs./kg.)
    Approx. 90kg

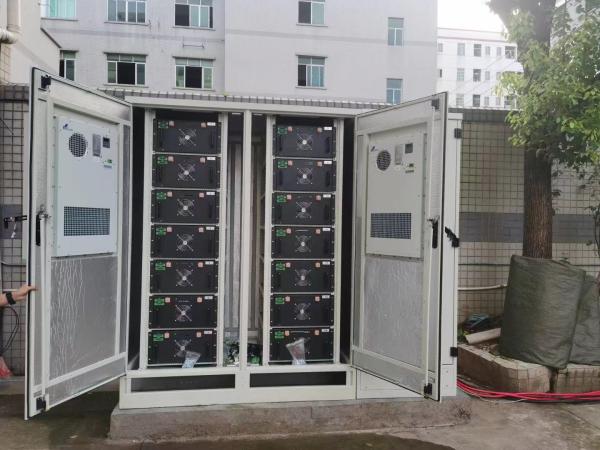

    The photos 5pcs 51.2V 200Ah connection in parallels to be 100kwh battery cabinet

    100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System


    We have full Battery Cabinet Projects Experience


    100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System

    100kw 100kwh Lifepo4 Battery Cabinet With 48v 200Ah Battery Energy Storage System


    System example diagram


    This 51.2V 1000Ah 100kwh battery cabinet can work once connect with matching Inverter, it can be charged by solar panels, or electricity grid.



    Feature
    1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
    2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
    3. Maintenance free.
    4. Internal battery balance.
    5. Light weight: about 40%~50% of the weight of lead-acid batteries.
    6. Can be charged using most standard lead acid charge (set).
    7. Wide temperature range: -20 ° C ~ 60 ° C.
    8. Support for series application extensions (up to 512V).
