EV Replacement Battery Cell Hybrid Battery For Toyota Prius Camry
Prius Camry Auris Axio Aqua
Datasheet of this replace battery cell:
| Nominal Voltage | 7.2V | |
| Nominal Capacity | 6.5AH | |
| Operating Voltage | 6.0~9.0V | |
| Nominal Energy | 45W | 1 hour rate |
| Power Density | >1450W/kg | |
| Energy Density | >40Wh/kg | |
Max. short continuous discharge current | 300A | 20℃~55℃ |
Max. continuous discharge current short time | 210A | 20℃~55℃ |
| Max. continuous charge current | 120A | 20℃~55℃ |
| Storage Temperature | -20~35℃ | |
| Operating Temperature | -30~55℃ | |
| Weight | 1450±50g | Standard environment Accuracy+0.05g Electronic |
Car models can use this battery cell to replace:
| NO. | Brand | Car model | cell number before | The voltage of system | battery construte | our Cell number of one pack |
| 1 | Toyota | Estima | 204 | 244.8 | 9.6V+14.4V | 12+9 |
| 2 | Toyota | Crown | 240 | 288 | 7.2V | 40 |
| 3 | Toyota | Voxy | 204 | 244.8 | 9.6V+14.4V | 12+9 |
| 4 | Toyota | Auris | 168 | 201.6 | 7.2V | 28 |
| 5 | Toyota | Sienta | 120 | 144 | 7.2V | 20 |
| 6 | Toyota | Alphard20 | 204 | 244.8 | 9.6V+14.4V | 12+9 |
| 7 | Toyota | Vellfire | 204 | 244.8 | 9.6V+14.4V | 12+9 |
| 8 | Toyota | Previa | 204 | 244.8 | 9.6V+14.4V | 12+9 |
| 9 | Toyota | RAV4 | 204 | 244.8 | 7.2V | 16+18 |
| 10 | Toyota | Avalon | 204 | 244.8 | 7.2V | 34 |
| 11 | Toyota | Levin | 168 | 201.6 | 7.2V | 28 |
| 12 | Toyota | Corolla | 168 | 201.6 | 7.2V | 28 |
| 13 | Toyota | Axio | 120 | 144 | 7.2V | 20 |
| 14 | Toyota | Prius | 168 | 201.6 | 7.2V | 28 |
| 15 | Toyota | Mirai | 168 | 201.6 | 7.2V | 28 |
| 16 | Toyota | Aqua/Prius C | 120 | 144 | 7.2V | 20 |
| 17 | Toyota | Yaris | 120 | 144 | 7.2V | 20 |
| 18 | Toyota | Noah | 168 | 201.6 | 7.2V | 28 |
| 19 | Toyota | C-HR | 168 | 201.6 | 7.2V | 28 |
| 20 | Toyota | Camry | 204 | 244.8 | 7.2V | 34 |
| 21 | Toyota | Sai | 204 | 244.8 | 7.2V | 34 |
| 22 | Toyota | Highlander | 240 | 288 | 9.6V | 30 |
| 23 | Lexus | RX400H | 240 | 288 | 9.6V | 6+12+12 |
| 24 | Lexus | RX450H | 240 | 288 | 9.6V | 30 |
| 25 | Lexus | NX300h | 204 | 244.8 | 7.2V | 16+18 |
| 26 | Lexus | UX250h | 180 | 216 | 7.2V | 30 |
| 27 | Lexus | UX260h | 240 | 288 | 9.6V | 30 |
| 28 | Lexus | LC500H | 240 | 288 | 14.4V | 20 |
| 29 | Lexus | LS500H | 240 | 288 | 14.4V | 20 |
| 30 | Lexus | CT200H | 168 | 201.6 | 7.2V | 28 |
| 31 | Lexus | GS300H | 204 | 244.8 | 7.2V | 34 |
| 32 | Lexus | GS450H | 240 | 288 | 7.2V | 40 |
| 33 | Lexus | GS250H | 204 | 244.8 | 7.2V | 34 |
| 34 | Lexus | GS350h | 204 | 244.8 | 7.2V | 34 |
| 35 | Lexus | HS250h | 204 | 244.8 | 7.2V | 34 |
| 36 | Lexus | IS300H | 192 | 230.4 | 7.2V | 32 |
| 37 | Lexus | LS600H | 240 | 288 | 14.4V | 20 |
| 38 | Lexus | ES300H | 204 | 244.8 | 7.2V | 34 |
| 39 | Cadillac | Escalade | 240 | 288 | 7.2V | 40 |
The features of our replace battery cells for toyota Lexus Hybrid
EV:
1. The cell number reduce a lot than original battery pack
2. Easy operate to install and replace old battery cell
3. Long cycle life, 6000 cycles 80% DOD
4. Safe performance
5. good low temperature performance
The performance of hybrid battery replace cell for toyota prius
camry EV
1 Open circuit Voltage (OCV): 7.5V Within 1h after charging
2 Internal resistance (DC-IR) ≤14.4 mΩ 50%SOC Discharge process: 180A10S,15010S,120A10S,90A10S,
3 Internal Impedance (AC-IR) ≤6.5 mΩ 1kHz
4 Self -discharge rate ＜16% 55±2℃ rest 3days
20±2℃ rest 7days
6 months self-discharge rate higher than 50%
5 Energy Efficiency ≥85% 25℃
6 VolumetricEfficiency ＞95% 25℃
7 Cycle Life ＞6000 80%DOD Charge to 90% discharge to 10%

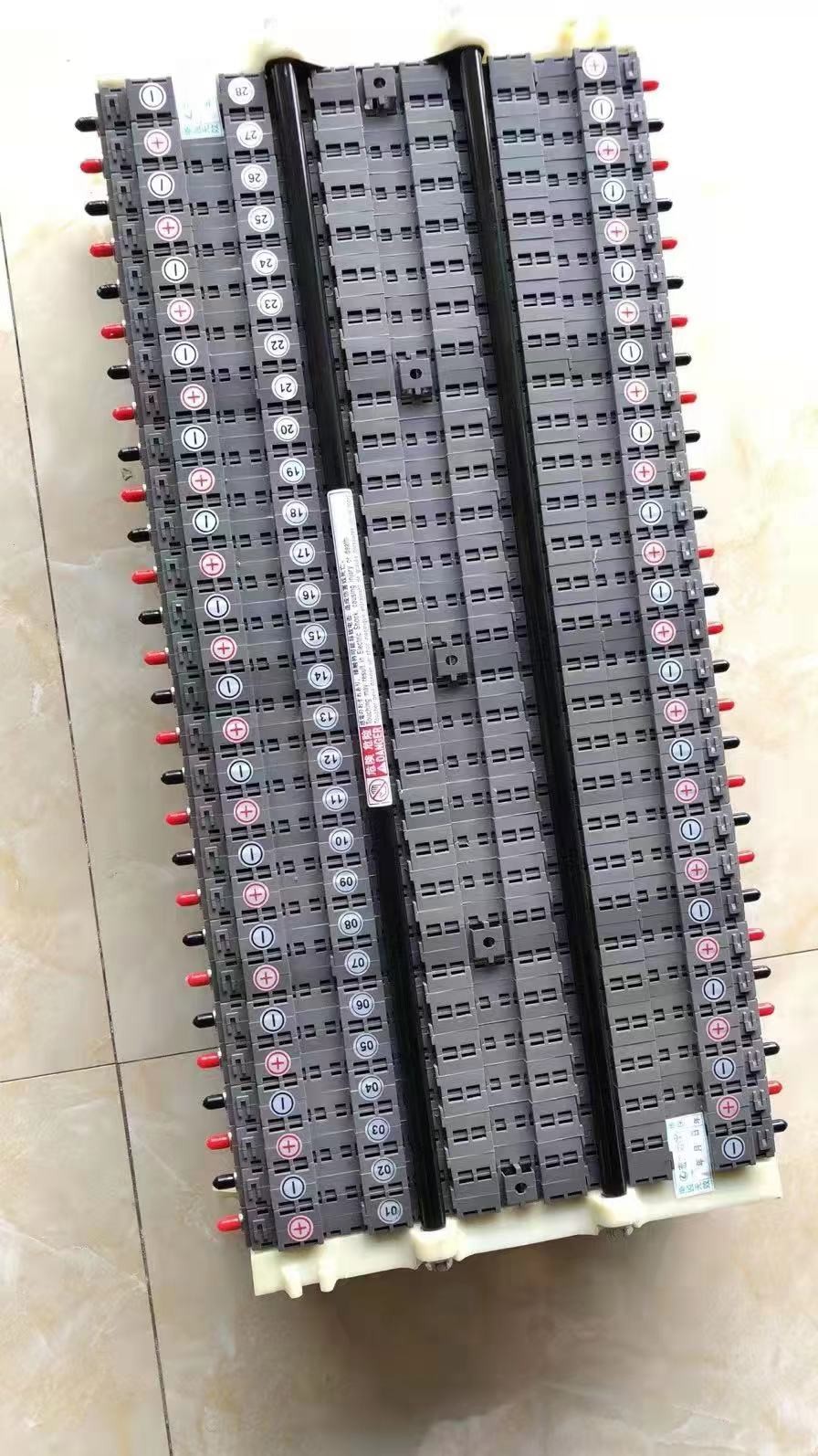

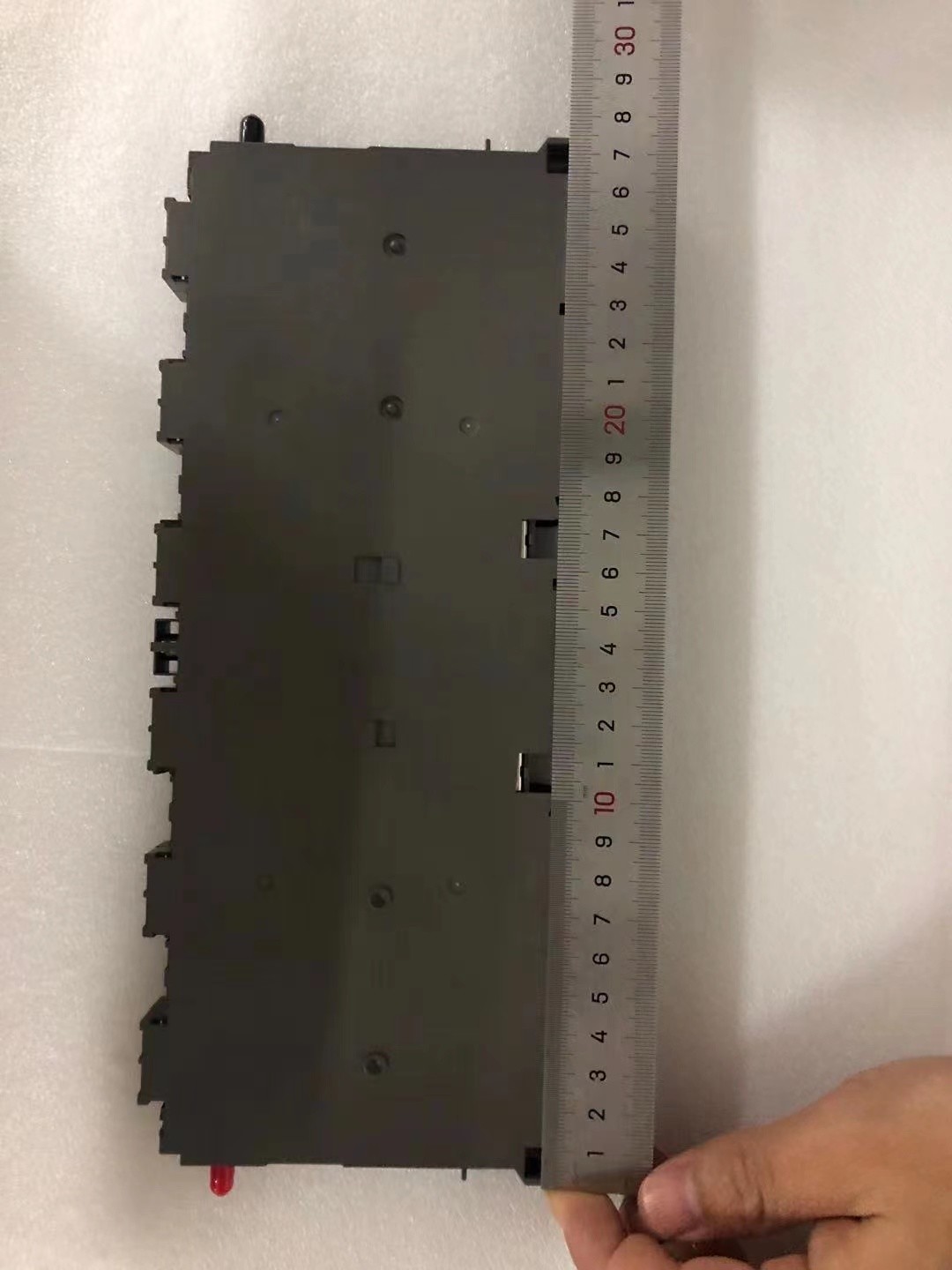

The Hybrid Battery cell detail photoes:
The cell number reduce, easy to install replace
Company introduction:
GreFlow Energy start business of rechargeable battery from 2010
year, have full experience on battery pack for kinds applications.
And have professional engineer and sales person service for
customer. Freely contact us for more informations!
